 > 产品展示 > RF环形磁芯>>T37-1 至 T68-6 |
|
|
| |
|
--- |

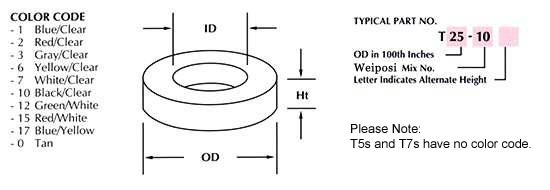

MAGNETIC DIMENSIONS |
|
WEIPOSI
Part No. |
AL
nH/N2 |
OD
in/mm |
ID
in/mm |
Ht
in/mm |
cm |
A
cm2 |
V
cm3 |
|
T37-1 |
8.0 |
.375/9.53 |
.205/5.21 |
.128/3.25 |
2.31 |
.064 |
.147 |
|
T37-2 |
4.0 |
|
T37-3 |
12.0 |
|
T37-6 |
3.0 |
|
T37-7 |
3.2 |
|
T37-10 |
2.5 |
|
T37-12 |
1.5 |
|
T37-15 |
9.0 |
|
T37-17 |
1.5 |
|
T37-0 |
.49 |
|
- |
|
T44-1 |
10.5 |
.440/11.2 |
.229/5.82 |
.159/4.04 |
2.68 |
.099 |
.266 |
|
T44-2 |
5.2 |
|
T44-3 |
18.0 |
|
T44-6 |
4.2 |
|
T44-7 |
4.6 |
|
T44-10 |
3.3 |
|
T44-12 |
1.85 |
|
T44-15 |
16.0 |
|
T44-17 |
1.85 |
|
T44-0 |
.65 |
|
- |
|
T44-2A |
3.6 |
.440/11.2 |
.229/5.82 |
.128/3.25 |
2.68 |
.080 |
.215 |
|
- |
|
T50-1 |
10.0 |
.500/12.7 |
.303/7.70 |
.190/4.83 |
3.19 |
.112 |
.358 |
|
T50-2 |
4.9 |
|
T50-3 |
17.5 |
|
T50-6 |
4.0 |
|
T50-7 |
4.3 |
|
T50-10 |
3.1 |
|
T50-12 |
1.8 |
|
T50-15 |
13.5 |
|
T50-17 |
1.8 |
|
T50-0 |
.64 |
|
- |
|
T51-2B |
13.8 |
.500/12.7 |
.200/5.08 |
.312/7.92 |
2.79 |
.282 |
.786 |
|
T51-6B |
10.2 |
|
- |
|
T60-2 |
6.5 |
.600/15.2 |
.336/8.53 |
.234/5.94 |
3.74 |
.187 |
.699 |
|
T60-6 |
5.5 |
|
- |
|
T68-1 |
11.5 |
.690/17.5 |
.370/9.40 |
.190/4.83 |
4.23 |
.179 |
.759 |
|
T68-2 |
5.7 |
|
T68-3 |
19.5 |
|
T68-6 |
4.7 |
| |
| |
|
|
|
