 > 产品展示 > RF环形磁芯>>T20-1 至 T30-1 |
|
|
| |
|
--- |

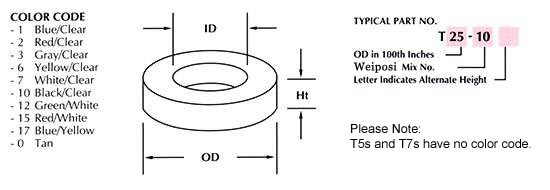

MAGNETIC DIMENSIONS |
WEIPOSI
Part No. |
AL
nH/N2 |
OD
in/mm |
ID
in/mm |
Ht
in/mm |
cm |
A
cm2 |
V
cm3 |
|
T20-1 |
5.2 |
.200/5.08 |
.088/2.24 |
.070/1.78 |
1.15 |
.023 |
.026 |
|
T20-2 |
2.5 |
|
T20-3 |
7.6 |
|
T20-6 |
2.2 |
|
T20-7 |
2.4 |
|
T20-10 |
1.6 |
|
T20-12 |
1.0 |
|
T20-15 |
6.5 |
|
T20-17 |
1.0 |
|
T20-0 |
.35 |
|
- |
|
T22-2 |
5.5 |
.223/5.66 |
.097/2.46 |
.143/3.63 |
1.28 |
.052 |
.067 |
|
T22-6 |
4.5 |
|
T22-10 |
3.2 |
|
- |
|
T25-1 |
7.0 |
.255/6.48 |
.120/3.05 |
.096/2.44 |
1.50 |
.037 |
.055 |
|
T25-2 |
3.4 |
|
T25-3 |
10.0 |
|
T25-6 |
2.7 |
|
T25-7 |
2.9 |
|
T25-10 |
1.9 |
|
T25-12 |
1.2 |
|
T25-15 |
8.5 |
|
T25-17 |
1.2 |
|
T25-0 |
.45 |
|
- |
|
T27-2 |
3.3 |
.280/7.11 |
.151/3.84 |
.128/3.25 |
1.71 |
.047 |
.080 |
|
T27-6 |
2.7 |
|
T27-10 |
2.2 |
|
T27-12 |
1.5 |
|
T27-17 |
1.3 |
|
T27-0 |
.45 |
|
- |
|
T30-1 |
8.5 |
.307/7.80 |
.151/3.84 |
.128/3.25 |
1.84 |
.061 |
.110 |
|
T30-2 |
4.3 |
|
T30-3 |
14.0 |
|
T30-6 |
3.6 |
|
T30-7 |
3.7 |
|
T30-10 |
2.5 |
|
T30-12 |
1.6 |
|
T30-15 |
9.3 |
|
T30-17 |
1.6 |
|
T30-0 |
.6 |
| |
| |
|
|
|
