 > 产品展示 > RF环形磁芯>>T68-7 至 T106-0 |
|
|
| |

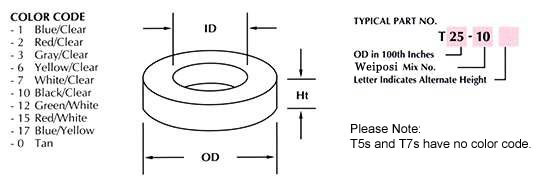

MAGNETIC DIMENSIONS |
WEIPOSI
Part No. |
AL
nH/N2 |
OD
in/mm |
ID
in/mm |
Ht
in/mm |
cm |
A
cm2 |
V
cm3 |
|
T68-7 |
5.2 |
.690/17.5 |
.370/9.40 |
.190/4.83 |
4.23 |
.179 |
.759 |
|
T68-10 |
3.2 |
|
T68-12 |
2.1 |
|
T68-15 |
18.0 |
|
T68-17 |
2.1 |
|
T68-0 |
.75 |
|
- |
|
T68-2A |
7.0 |
.690/17.5 |
.370/9.40 |
.250/6.35 |
4.23 |
.242 |
1.03 |
|
T68-3A |
26.0 |
|
T68-6A |
6.2 |
|
T68-7A |
7.3 |
|
- |
|
T72-2 |
12.8 |
.720/18.3 |
.280/7.11 |
.260/6.60 |
4.01 |
.349 |
1.40 |
|
T72-3 |
36.0 |
|
T72-7 |
9.5 |
|
- |
|
T80-1 |
11.5 |
.795/20.2 |
.495/12.6 |
.250/6.35 |
5.14 |
.231 |
1.19 |
|
T80-2 |
5.5 |
|
T80-3 |
18.0 |
|
T80-6 |
4.5 |
|
T80-10 |
3.2 |
|
T80-12 |
2.2 |
|
T80-15 |
17.0 |
|
T80-17 |
2.2 |
|
T80-0 |
.85 |
|
- |
|
T80-7B |
8.4 |
.795/20.2 |
.495/12.6 |
.375/9.53 |
5.14 |
.346 |
1.78 |
|
- |
|
T94-1 |
16.0 |
.942/23.9 |
.560/14.2 |
.312/7.92 |
5.97 |
.362 |
2.16 |
|
T94-2 |
8.4 |
|
T94-3 |
24.8 |
|
T94-6 |
7.0 |
|
T94-10 |
5.8 |
|
T94-15 |
20.0 |
|
T94-17 |
2.9 |
|
T94-0 |
1.06 |
|
- |
|
T106-1 |
32.5 |
1.060/26.9 |
.570/14.5 |
.437/11.1 |
6.49 |
.659 |
4.28 |
|
T106-2 |
13.5 |
|
T106-3 |
45.0 |
|
T106-6 |
11.6 |
|
T106-7 |
13.3 |
|
T106-15 |
34.5 |
|
T106-17 |
5.1 |
|
T106-0 |
1.9 |
| |
| |
|
|
|
