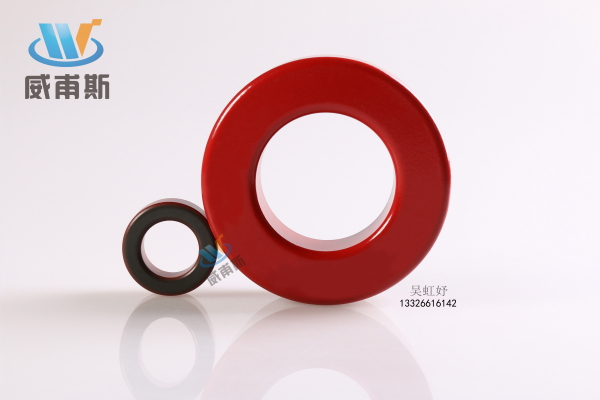

 > 产品展示 > 环形磁粉芯>>铁硅合金磁粉芯 |
|
|
 |
| |
|
|
型号
|
电感系数(nH/N²)
|
重量
(g)
|
磁路径长度
(cm)
|
截面面积
(cm²)
|
尺寸(mm)
外径(Max) X 内经(Min) X 高度(Max)
|
包装数量 (pcs/box)
|
PDF
档案
|
|
026
|
060
|
125
|
147
|
160
|
涂装前
|
涂装后
|
|
WH014
|
|
13
|
26
|
31
|
33
|
0.09
|
0.817
|
0.0137
|
3.56×1.78×1.52
|
3.94×1.52×1.96
|
40K
|
|
|
WH015
|
|
17
|
35
|
41
|
45
|
0.18
|
0.942
|
0.0211
|
3.94×2.24×2.54
|
4.32×1.98×2.97
|
40K
|
|
|
WH018
|
|
20
|
42
|
49
|
53
|
0.25
|
1.06
|
0.0285
|
4.65×2.36×2.54
|
5.21×1.93×3.30
|
40K
|
|
|
WH025
|
10
|
24
|
50
|
59
|
64
|
0.53
|
1.361
|
0.047
|
6.35×2.79×2.79
|
6.99×2.29×3.43
|
30K
|
|
|
WH026
|
11
|
26
|
54
|
64
|
69
|
0.57
|
1.363
|
0.0476
|
6.60×2.67×2.54
|
7.24×2.29×3.18
|
20K
|
|
|
WH027
|
21
|
50
|
103
|
122
|
132
|
1.07
|
1.363
|
0.092
|
6.60×2.67×4.78
|
7.32×2.21×5.54
|
20K
|
|
|
WH028
|
14
|
33
|
70
|
81
|
89
|
0.98
|
1.65
|
0.0752
|
6.86×3.96×5.08
|
7.62×3.45×5.72
|
16K
|
|
|
WH031
|
11
|
25
|
52
|
62
|
66
|
1.90
|
1.787
|
0.0615
|
7.87×3.96×3.18
|
8.51×3.43×3.81
|
16K
|
|
|
WH039
|
11
|
25
|
53
|
63
|
68
|
1.34
|
2.18
|
0.0725
|
9.65×4.78×3.18
|
10.29×4.27×3.81
|
8K
|
|
|
WH038
|
14
|
32
|
66
|
78
|
84
|
1.68
|
2.18
|
0.0945
|
9.65×4.78×3.96
|
10.29×4.27×4.57
|
8K
|
|
|
WH040
|
14
|
32
|
66
|
78
|
84
|
2.00
|
2.38
|
0.1
|
10.16×5.08×3.96
|
10.80×4.57×4.57
|
8K
|
|
|
WH044
|
11
|
26
|
53
|
63
|
68
|
2.08
|
2.69
|
0.0906
|
11.18×6.35×3.96
|
11.90×5.89×4.72
|
6K
|
|
|
WH050
|
12
|
27
|
56
|
67
|
72
|
2.99
|
3.12
|
0.114
|
12.70×7.62×4.75
|
13.46×6.99×5.51
|
4K
|
|
|
WH065
|
15
|
35
|
72
|
88
|
92
|
6.6
|
4.11
|
0.192
|
16.51×10.16×6.35
|
17.40×9.53×7.11
|
1960
|
|
|
WH068
|
19
|
43
|
89
|
105
|
114
|
7.8
|
4.14
|
0.232
|
17.27×9.65×6.35
|
18.03×9.02×7.11
|
1960
|
|
|
WH080
|
14
|
32
|
68
|
81
|
87
|
9.6
|
5.09
|
0.226
|
20.32×12.70×6.35
|
21.1×12.07×7.11
|
1368
|
|
|
WH090
|
19
|
43
|
90
|
106
|
115
|
15.1
|
5.67
|
0.331
|
22.86×13.97×7.62
|
23.62×13.39×8.38
|
850
|
|
|
WH092
|
22
|
51
|
105
|
124
|
135
|
18.6
|
5.88
|
0.388
|
23.57×14.40×8.89
|
24.30×13.77×9.70
|
750
|
|
|
WH106
|
32
|
75
|
157
|
185
|
201
|
34.0
|
6.35
|
0.654
|
26.92×14.73×11.18
|
27.70×14.10×11.99
|
360
|
|
|
WH130
|
28
|
61
|
127
|
150
|
163
|
44.8
|
8.15
|
0.672
|
33.02×19.94×10.67
|
33.83×19.30×11.61
|
240
|
|
|
WH131
|
16
|
38
|
79
|
93
|
101
|
33.7
|
8.95
|
0.454
|
34.29×23.37×8.89
|
35.20×22.60×9.83
|
280
|
|
|
WH140
|
24
|
56
|
117
|
138
|
150
|
50
|
8.98
|
0.678
|
35.81×22.35×10.46
|
36.70×21.50×11.28
|
240
|
|
|
WH157
|
35
|
81
|
168
|
198
|
215
|
87
|
9.84
|
1.072
|
39.88×24.13×14.48
|
40.70×23.30×15.37
|
120
|
|
|
WH184
|
59
|
135
|
281
|
33
|
360
|
174
|
10.74
|
1.99
|
46.74×24.13×18.03
|
47.60×23.30×18.92
|
72
|
|
|
WH185
|
37
|
86
|
178
|
210
|
228
|
124
|
11.63
|
1.34
|
46.74×28.70×15.24
|
47.60×27.90×16.13
|
72
|
|
|
WH200
|
32
|
73
|
152
|
179
|
195
|
126
|
12.73
|
1.25
|
50.80×31.75×13.46
|
51.70×30.90×14.35
|
96
|
|
|
WH226
|
60
|
138
|
287
|
306
|
333
|
237
|
12.5
|
2.29
|
57.15×26.39×15.24
|
28.00×25.60×16.10
|
77
|
|
|
WH225
|
33
|
75
|
156
|
185
|
200
|
173
|
14.3
|
1.444
|
57.15×35.56×13.97
|
58.00×34.70×14.86
|
88
|
|
|
WH610
|
|
192
|
400
|
|
|
423
|
14.37
|
3.675
|
62.0×32.6×25.0
|
63.1×31.37×26.27
|
24
|
|
|
WH740
|
|
206
|
429
|
|
|
729
|
18.38
|
5.04
|
74.1×45.3×35.0
|
75.2×44.07×36.27
|
15
|
|
|
WH300
|
30
|
68
|
142
|
|
|
287
|
20
|
1.77
|
77.8×49.23×12.7
|
78.9×48.0×13.97
|
40
|
|
|
WH306
|
35
|
85
|
178
|
|
|
359
|
20
|
2.27
|
77.8×49.23×15.9
|
78.9×48.0×17.2
|
35
|
|
|
WH1013
|
40
|
92
|
192
|
|
|
609.6
|
24.27
|
2.97
|
101.6×57.2×13.6
|
103.1×55.7×14.9
|
12
|
|
|
WH1016
|
47
|
112
|
228
|
|
|
739.6
|
24.27
|
3.52
|
101.6×57.2×16.5
|
103.1×55.7×17.8
|
10
|
|
|
WH1027
|
80
|
184
|
384
|
|
|
1219.3
|
24.27
|
5.94
|
101.6×57.2×27.2
|
103.1×55.7×28.5
|
6
|
|
|
WH1033
|
94
|
224
|
456
|
|
|
1497.3
|
24.27
|
7.04
|
101.6×57.2×33.0
|
103.1×55.7×34.3
|
6
|
|
|
WH1320
|
54
|
124
|
259
|
|
|
1422.4
|
32.42
|
5.35
|
132.5×78.6×20.3
|
134.2×77.0×21.7
|
5
|
|
|
WH1325
|
68
|
156
|
325
|
|
|
1779.8
|
32.42
|
6.71
|
132.5×78.6×25.4
|
134.2×77.0×26.8
|
4
|
|
|
WH1333
|
88
|
202
|
422
|
|
|
2312.4
|
32.42
|
8.72
|
132.5×78.6×33.0
|
134.2×77.0×34.4
|
3
|
|
|
WH1340
|
108
|
248
|
518
|
|
|
2844.9
|
32.42
|
10.69
|
132.5×78.6×40.6
|
134.2×77.0×42.0
|
3
|
|
|
WH1625
|
80
|
184
|
3848
|
|
|
3120.2
|
38.65
|
9.46
|
165.0×88.9×25.4
|
167.2×86.9×27.3
|
4
|
|
|
|
|
|
|
| |
|
|
|
